Fittings & Valves
Parker
Qube Filters

filter R35

F35-02A

filter F105

filter F75

F75-04B / F105-06B

  • Connects to Other QUBE Units Using Just Screws and O-rings (Included)
  • Integral Mounting Slots Eliminate Need for Mounting Brackets
  • For Applications Requiring Minimum Pressure Drop
  • Excellent Water Removal Efficiency
  • Unique Deflector Plate that Creates Swirling of the Air Stream Ensuring Maximum Water and Dirt Separation
  • Large Filter Element Surface Guarantees Low Pressure Drop and Increased Element Life
  • F35: 20 Micron Filter Element Standard
  • F75 & F105: 40 Micron Filter Element Standard
  • 5 Micron Available
  • F35: Optional Auto Pulse Drain
  • F75 & F105: Optional Auto Float Drain
  • Large Bowl Capacity
  • High Flow:
    F35: 1/8" - 32 SCFM 1/4" - 38 SCFM
    F75: 1/4" - 43 SCFM, 3/8" - 1/2" - 73 SCFM
    F105: 1/2" - 120 SCFM, 3/4" - 160 SCFM
A B C D E F G
F35-A / F35-D Dimensions
1.59 1.59 0.81 4.25 0.80 1.31 0.58
F35-W Dimensions
1.59 1.59 0.81 4.27 0.80 1.31 0.58
F75-B / F75-D Dimensions
2.19 2.19 1.01 5.19 1.09 1.66 0.70
F75-W Dimensions
2.19 2.19 1.01 5.31 1.09 1.66 0.70
F105-04B, D or W Dimensions
2.69 2.69 1.34 6.66 1.35 2.27 0.88
F105-06B, D or W Dimensions
3.03 2.69 1.34 6.66 1.35 2.55 0.88
Part # Port Size Bowl Type
F35-01A 1/8" Polyurethane Bowl
F35-02A 1/4" Polyurethane Bowl
F35-01D 1/8" Metal without Sight Gauge
F35-02D 1/4" Metal without Sight Gauge
F35-01W 1/8" Zinc Bowl with Sight Gauge
F35-02W 1/4" Zinc Bowl with Sight Gauge
F75-02B 1/4" Polyurethane Bowl with Plastic Guard
F75-03B 3/8" Polyurethane Bowl with Plastic Guard
F75-04B 1/2" Polyurethane Bowl with Plastic Guard
F75-02D 1/4" Metal without Sight Gauge
F75-03D 3/8" Metal without Sight Gauge
F75-04D 1/2" Metal without Sight Gauge
F75-02W 1/4" Metal with Sight Gauge
F75-03W 3/8" Metal with Sight Gauge
F75-04W 1/2" Metal with Sight Gauge
F105-04B 1/2" Polyurethane Bowl with Plastic Guard
F105-06B 3/4" Polyurethane Bowl with Plastic Guard
F105-04D 1/2" Metal without Sight Gauge
F105-06D 3/4" Metal without Sight Gauge
F105-04W 1/2" Metal with Sight Gauge
F105-06W 3/4" Metal with Sight Gauge

F35 Filter Kits & Accessories

Part # Bowl Kits
BKF35A Polyurethane (A)
BKF35D Zinc (D)
BKF35W Zinc (W) Wraparound Sight Gauge
Drain Kits
SA600Y7-1 Manual Twist Drain
PKF35 Piston (Max. Pressure: 175 PSIG)
SA602A7 Semi-Automatic “Overnight” Drain
(Drains automatically under zero pressure)
Element Kits
EK504VY 5 Micron
EK504Y 20 Micron
Kits
SAR35Y57 Face Mounting Bracket Kit
RKF30 Repair Kit, Deflector, Retainer

Specifications

  • Bowl Capacity: 1.5 Ounce
  • Port Threads : 1/8, 1/4 Inch
  • Pressure & Temperature Ratings:
    Polyurethane Bowl: 0 to 150 PSIG from 40°F to 125°F
    Zinc Bowl: 0 to 300 PSIG from 40°F to 180°F
    With Piston Drain: 175 PSIG Max. Pressure from 40°F to 150°F
    Zinc Bowl with Sight Gauge: 0 to 250 PSIG
    With Piston Drain 175 PSIG Max. Pressure from 40°F to 150°F

F75 Filter Kits & Accessories

Part # Bowl Kits
BKF55B Polyurethane (B)
BKF55D Zinc (D)
BKF55W Zinc (W) Wraparound Sight Gauge
Drain Kits
SA600Y7-1 Manual Twist Drain
SA602A7 Semi-Automatic “Overnight” Drain
(Drains automatically under zero pressure)
SA605MD Automatic Float Drain
Element Kits
EK55G 5 Micron
EK55J 40 Micron
Kits
SAR75Y57 Face Mounting Bracket Kit
RKF55 Repair Kit, Deflector, Retainer

Specifications

  • Bowl Capacity: 3.8 Ounce
  • Port Threads: 1/4, 3/8, 1/2 Inch
  • Pressure & Temperature Ratings :
    Polyurethane Bowl: 0 to 150 PSIG from 4 0°F to 125°F
    Zinc Bowl: 0 to 300 PSIG from 4 0°F to 180°F
    With Automatic Float Drain: 175 PSIG Max. Pressure from 4 0°F to 125°F
    Zinc Bowl with Sight Gauge: 0 to 250 PSIG from 4 0°F to 150°F
    With Automatic Float Drain: 175 PSIG Maximum Pressure from 0°F to 125°F

F105 Filter Kits & Accessories

Part # Bowl Kits
BKF105B Polyurethane (B)
BKF105D Zinc (D)
BKF105W Zinc (W) Wraparound Sight Gauge
Drain Kits
SA600Y7-1 Manual Twist Drain
SA602A7 Semi-Automatic “Overnight” Drain
(Drains automatically under zero pressure)
SA605MD Automatic Float Drain
Element Kits
EKF100G 5 Micron
EKF100J 40 Micron
Kits
SAR105Y57 Face Mounting Bracket Kit
RKF100 Repair Kit, Deflector, Retainer

Specifications

  • Bowl Capacity: 8.5 Ounce
  • Port Threads: 1/2, 3/4 Inch
  • Pressure & Temperature Ratings :
    Polyurethane Bowl: 0 to 150 PSIG from 4 0°F to 125°F
    Zinc Bowl: 0 to 300 PSIG from 4 0°F to 180°F
    With Automatic Float Drain: 175 PSIG Max. Pressure from 4 0°F to 125°F
    Zinc Bowl with Sight Gauge: 0 to 250 PSIG from 4 0°F to 150°F
    With Automatic Float Drain: 175 PSIG Maximum Pressure from 0°F to 125°F

^Top

Qube Coalescing Filters

Coalescing Filter F31

F31-02B

Coalescing Filter F101

Coalescing Filter F71

F71-04B / F105-06B

  • Connects to Other QUBE Units Using Just Screws and O-rings (Included)
  • Integral Mounting Slots Eliminate Need for Mounting Brackets
  • Removes Oil and Water Aerosols, as Well as Particulate Matter Down To 0.01 Micron.
  • Pleated Element for Longer Life and Lower Pressure Drop
  • Integral Pop-up Style Element Service Life Indicator (F71 & F101)
  • large Filter Element Surface Guarantees Low Pressure Drop and Increased Element Life
  • Activated Carbon Elements Available for Oil Vapor Removal
  • F35: Optional Auto Pulse Drain
  • F71, F101: Optional Auto Float Drain
  • Large Bowl Capacity
  • High Flow:
    F31: 1/8" & 1/4" - 20 SCFM
    F71: 1/4", 3/8", 1/2" - 43 SCFM
    F101: 1/2", 3/4" - 85 SCFM

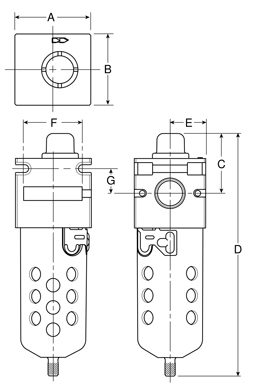

A B C D E F G
F31-A / F31-D Dimensions
1.59 1.59 0.81 4.25 0.80 1.31 0.58
F31-W Dimensions
1.59 1.59 0.81 4.27 0.80 1.31 0.58
F71-B / F71-D Dimensions
2.19 2.06 1.72 6.91 1.06 1.66 0.71
F71-W Dimensions
2.19 2.06 1.72 7.16 1.03 1.63 0.71
F101-04 B or D Dimensions
2.69 2.69 2.06 8.59 1.35 2.18 0.81
F101-04W Dimensions
2.69 2.69 2.06 8.75 1.35 2.18 0.81
F101-06 B or D Dimensions
3.03 2.69 2.06 8.59 1.35 2.55 0.81
F101-06W Dimensions
3.03 2.69 2.06 8.75 1.35 2.55 0.81
Part # Port Size Bowl Type
F31-01A 1/8" Polyurethane Bowl
F31-02A 1/4" Polyurethane Bowl
F31-01D 1/8" Metal without Sight Gauge
F31-02D 1/4" Metal without Sight Gauge
F31-01W 1/8" Zinc Bowl with Sight Gauge
F31-02W 1/4" Zinc Bowl with Sight Gauge
F71-02B 1/4" Polyurethane Bowl with Plastic Guard
F71-03B 3/8" Polyurethane Bowl with Plastic Guard
F71-04B 1/2" Polyurethane Bowl with Plastic Guard
F71-02D 1/4" Metal without Sight Gauge
F71-03D 3/8" Metal without Sight Gauge
F71-04D 1/2" Metal without Sight Gauge
F71-02W 1/4" Metal with Sight Gauge
F71-03W 3/8" Metal with Sight Gauge
F71-04W 1/2" Metal with Sight Gauge
F101-04B 1/2" Polyurethane Bowl with Plastic Guard
F101-06B 3/4" Polyurethane Bowl with Plastic Guard
F101-04D 1/2" Metal without Sight Gauge
F101-06D 3/4" Metal without Sight Gauge
F101-04W 1/2" Metal with Sight Gauge
F101-06W 3/4" Metal with Sight Gauge

F31 Filter Kits & Accessories

Part # Bowl Kits
BKF35A Polyurethane (A)
BKF35D Zinc (D)
BKF35W Zinc (W) Wraparound Sight Gauge
Drain Kits
SA600Y7-1 Manual Twist Drain
RK504SY Piston (Max. Pressure: 175 PSIG)
SA602A7 Semi-Automatic “Overnight” Drain
(Drains automatically under zero pressure)
Element Kits
EKF35A Activated Carbon
EKF31H Coalescing
Kits
SAR35Y57 Face Mounting Bracket Kit

Specifications

  • Bowl Capacity: 1.5 Ounce
  • Port Threads : 1/8, 1/4 Inch
  • Pressure & Temperature Ratings:
    Polyurethane Bowl: 0 to 150 PSIG from 40°F to 125°F
    Zinc Bowl: 0 to 300 PSIG from 40°F to 180°F
    With Piston Drain: 175 PSIG Max. Pressure from 40°F to 150°F
    Zinc Bowl with Sight Gauge: 0 to 250 PSIG
    With Piston Drain 175 PSIG Max. Pressure from 40°F to 150°F

F71 Filter Kits & Accessories

Part # Bowl Kits
BKF55B Polyurethane (B)
BKF55D Zinc (D)
BKF55W Zinc (W) Wraparound Sight Gauge
Drain Kits
SA600Y7-1 Manual Twist Drain
SA602A7 Semi-Automatic “Overnight” Drain
(Drains automatically under zero pressure)
SA605MD Automatic Float Drain
Element Kits
EKF71A Activated Carbon
EKF71H Coalescing
Kits
SAR75Y57 Face Mounting Bracket Kit

Specifications

  • Bowl Capacity: 3.8 Ounce
  • Port Threads: 1/4, 3/8, 1/2 Inch
  • Pressure & Temperature Ratings :
    Polyurethane Bowl: 0 to 150 PSIG from 4 0°F to 125°F
    Zinc Bowl: 0 to 300 PSIG from 4 0°F to 180°F
    With Automatic Float Drain: 175 PSIG Max. Pressure from 4 0°F to 125°F
    Zinc Bowl with Sight Gauge: 0 to 250 PSIG from 4 0°F to 150°F
    With Automatic Float Drain: 175 PSIG Maximum Pressure from 0°F to 125°F

F101 Filter Kits & Accessories

Part # Bowl Kits
BKF105B Polyurethane (B)
BKF105D Zinc (D)
BKF105W Zinc (W) Wraparound Sight Gauge
Drain Kits
SA600Y7-1 Manual Twist Drain
SA602A7 Semi-Automatic “Overnight” Drain
(Drains automatically under zero pressure)
SA605MD Automatic Float Drain
Element Kits
EKF101A Activated Carbon
EKF101 Coalescing
Kits
SAR105Y57 Face Mounting Bracket Kit
RKF100 Repair Kit, Deflector, Retainer

Specifications

  • Bowl Capacity: 8.5 Ounce
  • Port Threads: 1/2, 3/4 Inch
  • Pressure & Temperature Ratings :
    Polyurethane Bowl: 0 to 150 PSIG from 4 0°F to 125°F
    Zinc Bowl: 0 to 300 PSIG from 4 0°F to 180°F
    With Automatic Float Drain: 175 PSIG Max. Pressure from 4 0°F to 125°F
    Zinc Bowl with Sight Gauge: 0 to 250 PSIG from 4 0°F to 150°F
    With Automatic Float Drain: 175 PSIG Maximum Pressure from 0°F to 125°F

^Top

Qube Regulators

Regulator R35

R35-02C

Regulator R75

Regulator R105

R75-04C / R105-06C

  • Connects to Other QUBE Units Using Just Screws and O-rings (Included)
  • Integral Mounting Slots Eliminate Need for Mounting Brackets
  • R35: Piston Operated for High Flow and Low Pressure Drop
  • R75 & R105: Diaphragm Operated Design with Balanced Poppet Design for Quick and Accurate Regulation
  • Panel Mountable
  • Gauge sold extra
  • High Flow:
    R35: 1/8" - 30 SCFM, 1/4" - 40 SCFM
    R75: 1/4" - 25 SCFM, 3/8" - 45 SCFM, 1/2" - 60 SCFM
    R105: 150 SCFM
A B C D E F G
R35 Dimensions
1.59 1.59 2.98 1.11 0.80 1.31 0.58
R75 Dimensions
2.19 2.06 2.75 1.38 1.09 1.66 0.69
R105-04 Dimensions
2.69 2.69 3.75 1.81 1.35 2.30 0.81
R105-06 Dimensions
3.03 2.69 3.75 1.81 1.35 2.55 0.81

NOTE:
R35 & R75 1.25" Diameter hole required for panel mounting.
R105 : 1.75" Diameter hole required for panel mounting.

Part # Port Size
R35-01C 1/8"
R35-02C 1/4"
R75-02C 1/4"
R75-03C 3/8"
R75-04C 1/2"
R105-04C 1/2"
R105-06C 3/4"

Pressure Ranges

A: 0–25 PSIG
B: 0–60 PSIG
C: 0–125 PSIG
D: 0–250 PSIG (available only in the R105 series)

R35 Kits & Accessories

Part # Kits
CKR35A Cage Kits A Range
CKR35BC Cage Kits B & C Range
R35-0545P Control Knob
SA161X57 Panel Mounting Bracket Kit
SAR35Y57 Face Mounting Bracket Kit
R05X51-P Panel Mount Nut, Plastic
R05X51-A Panel Mount Nut, Aluminum
Repair Kits
RKR30K Non-Relieving Piston, Valve Assembly
RKR30 Relieving Piston, Valve Assembly

Specifications

  • Gauge Ports: (2)1/8 Inch
  • Supply Pressure: 300 PSIG Maximum
  • Temperature Rating: 40°F to 125°F

Gauges sold separately

Pressure gauges dial size 1-1/2"
back connection 1/8" NPT
steel body

gauge

Part # Range
274Z60 0-60
274Z160 0-160

R75 Kits & Accessories

Part # Kits
CKR75 Cage Kits Standard
CKR75T Cage Kits Tamperproof
R35-0545P Control Knob
SA161X57 Panel Mounting Bracket Kit
SAR75Y57 Face Mounting Bracket Kit
R05X51-P Panel Mount Nut, Plastic
R05X51-A Panel Mount Nut, Aluminum
Repair Kits
RKR75K Non-Relieving Piston, Valve Assembly
RKR75 Relieving Piston, Valve Assembly

Specifications

  • Gauge Ports: (2)1/8 Inch
  • Supply Pressure: 300 PSIG Maximum
  • Temperature Rating: 40°F to 125°F

Gauges sold separately

Pressure gauges dial size 1-1/2"
back connection 1/8" NPT
steel body

gauge

Part # Range
274Z60 0-60
274Z160 0-160

R105 Kits & Accessories

Part # Kits
CKR105 Cage Kits Standard
R105-0542P Control Knob
SAR10X57 Panel Mounting Bracket Kit
SAR105Y57 Face Mounting Bracket Kit
R10X51-P Panel Mount Nut, Plastic
R10X51-A Panel Mount Nut, Aluminum
Repair Kits
RKR105K Non-Relieving Piston, Valve Assembly
RKR105 Relieving Piston, Valve Assembly

Specifications

  • Gauge Ports: (2)1/4 Inch
  • Supply Pressure: 300 PSIG Maximum
  • Temperature Rating: 40°F to 150°F

Gauges sold separately

Pressure gauges dial size 2"
back connection 1/4" NPT
steel body

gauge

Part # Range
275Y30 0-30
275Y60 0-60
275Y160 0-160
275Y300 0-300

^Top

Qube Lubricators

Lubricator L35

L35-02B

Lubricator L75

Lubricator L105

L75-04B / L105-06B

  • Connects to Other QUBE Units Using Just Screws and O-rings (Included)
  • For Applications Requiring Minimum Pressure Drop
  • L75 & L105: Drain Standard on Metal Bowl and Metal Bowl with Sight Gauge
  • L75 & L105: Can be Filled While Unit is Under Pressure
  • Precision Needle Valve Assures Repeatable Oil Delivery and Provides Simple Adjustment of Delivery Rate.
  • Large Capacity Bowl
  • High Flow:
    L35: 1/8" - 23 SCFM, 1/4" - 45 SCFM
    L75: 1/4" - 15 SCFM, 3/8" - 80 SCFM, 1/2" - 80 SCFM
    L105: 1/2" - 110 SCFM, 3/4" - 125 SCFM

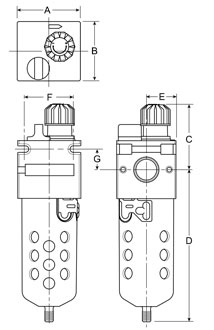

A B C D E F G
L35 A Dimensions
1.59 1.59 2.09 3.66 0.80
L35 D Dimensions
1.59 1.59 2.09 3.63 0.80
L35 W Dimensions
1.59 1.59 2.09 3.84 0.80
L75 B Dimensions
2.19 2.00 2.44 4.72 1.00 1.66 0.72
L75 D Dimensions
2.19 2.00 2.44 5.15 1.00 1.66 0.70
L75 W Dimensions
2.19 2.00 2.44 5.37 1.00 1.66 0.70
L105-04B Dimensions
2.69 2.69 3.00 6.03 1.34 2.25 0.81
L105-04D Dimensions
2.69 2.69 3.00 6.62 1.34 2.25 0.81
L105-04W Dimensions
2.69 2.69 3.00 6.90 1.34 2.25 0.81
L105-06B Dimensions
3.03 2.69 3.00 6.03 1.34 2.55 0.81
L105-06D Dimensions
3.03 2.69 3.00 6.62 1.34 2.55 0.81
L105-06W Dimensions
3.03 2.69 3.00 6.90 1.34 2.55 0.81
Part # Port Size Bowl Type
L35-01A 1/8" Polyurethane Bowl
L35-02A 1/4" Polyurethane Bowl
L35-01D 1/8" Metal without Sight Gauge
L35-02D 1/4" Metal without Sight Gauge
L35-01W 1/8" Zinc Bowl with Sight Gauge
L35-02W 1/4" Zinc Bowl with Sight Gauge
L75-02B 1/4" Polyurethane Bowl with Plastic Guard
L75-03B 3/8" Polyurethane Bowl with Plastic Guard
L75-04B 1/2" Polyurethane Bowl with Plastic Guard
L75-02D 1/4" Metal without Sight Gauge
L75-03D 3/8" Metal without Sight Gauge
L75-04D 1/2" Metal without Sight Gauge
L75-02W 1/4" Metal with Sight Gauge
L75-03W 3/8" Metal with Sight Gauge
L75-04W 1/2" Metal with Sight Gauge
L105-04B 1/2" Polyurethane Bowl with Plastic Guard
L105-06B 3/4" Polyurethane Bowl with Plastic Guard
L105-04D 1/2" Metal without Sight Gauge
L105-06D 3/4" Metal without Sight Gauge
L105-04W 1/2" Metal with Sight Gauge
L105-06W 3/4" Metal with Sight Gauge

L35 Kits & Accessories

Part # Bowl Kits
BKL35A Polyurethane (A)
BKL35D Zinc (D)
BKL35W Zinc (W) Wraparound Sight Gauge
Kits
SAR35Y57 Face Mounting Bracket Kit
RKL100 Tamper-resistant Sight Dome

Specifications

  • Bowl Capacity: 1.5 Ounce
  • Port Threads : 1/8, 1/4 Inch
  • Pressure & Temperature Ratings:
    Polyurethane Bowl: 0 to 150 PSIG from 40°F to 125°F
    Zinc Bowl: 0 to 300 PSIG from 40°F to 180°F
    Zinc Bowl with Sight Gauge: 0 to 250 PSIG

L75 Kits & Accessories

Part # Bowl Kits
BKL55B Polyurethane (B)
BKF55D Zinc (D)
BKF55W Zinc (W) Wraparound Sight Gauge
Drain Kits
SA600Y7-1 Manual Twist Drain
Kits
L606C14 Button Head Fill Fitting (M14 Male thread)
SAR75Y57 Face Mounting Bracket Kit
RKL100 Tamper-resistant Sight Dome

Specifications

  • Bowl Capacity: 3.8 Ounce
  • Port Threads : 1/4, 3/8, 1/2 Inch
  • Pressure & Temperature Ratings:
    Polyurethane Bowl: 0 to 150 PSIG from 40°F to 125°F
    Zinc Bowl: 0 to 300 PSIG from 40°F to 180°F
    Zinc Bowl with Sight Gauge: 0 to 250 PSIG

L105 Kits & Accessories

Part # Bowl Kits
BKL105B Polyurethane (B)
BKF105D Zinc (D)
BKF105W Zinc (W) Wraparound Sight Gauge
Drain Kits
SA600Y7-1 Manual Twist Drain
Kits
L606C14 Button Head Fill Fitting (M14 Male thread)
SAR105Y57 Face Mounting Bracket Kit
RKL100 Tamper-resistant Sight Dome

Specifications

  • Bowl Capacity: 8.5 Ounce
  • Port Threads : 1/2, 3/4 Inch
  • Pressure & Temperature Ratings:
    Polyurethane Bowl: 0 to 150 PSIG from 40°F to 125°F
    Zinc Bowl: 0 to 300 PSIG from 40°F to 180°F
    Zinc Bowl with Sight Gauge: 0 to 250 PSIG

^Top

Qube Integral Filter / Regulator

Integral Filter/Regulator B35

B35-02B

Integral Filter/Regulator B75

Integral Filter/Regulator B105

B75-04B / B105-06B

  • Connects to Other QUBE Units Using Just Screws and O-rings (Included)
  • Integral Mounting Slots Eliminate Need for Mounting Brackets
  • B35: Piston Operated Regulator for High Flow and Low Pressure Drop
  • B75 & B105: Diaphragm Operated Design with Balanced Poppet Design for Quick And Accurate Regulation
  • Panel Mountable
  • Excellent Water Removal Efficiency
  • Unique Deflector Plate that Creates Swirling of the Air Stream Ensuring Maximum Water and Dirt Separation
  • Large Filter Element Surface Guarantees Low Pressure Drop and Increased Element Life
  • B35: 20 Micron Filter Element Standard
  • B75 & B105: 40 Micron Filter Element Standard
  • 5 Micron Available
  • B35: Manual Drain as Standard, Optional Auto Pulse Drain
  • B75 & B105: Manual Drain as Standard, Optional Auto Float Drain
  • Large Bowl Capacity
  • High Flow:
    B35: 1/8" & 1/4" - 35 SCFM
    B75: 1/4" - 40 SCFM, 3/8" - 60 SCFM, 1/2" - 80 SCFM
    B105: 1/2" - 150 SCFM, 3/4" - 150 SCFM
A B C D E F G
B35 A Dimensions
1.59 1.59 2.58 4.23 0.80 1.31 0.58
B35 D Dimensions
1.59 1.59 2.58 4.25 0.80 1.31 0.58
B35 W Dimensions
1.59 1.59 2.58 4.45 0.80 1.31 0.58
B75 B - D Dimensions
2.00 2.00 2.78 5.19 1.00 1.64 0.70
B75 W Dimensions
2.00 2.00 2.78 5.44 1.00 1.64 0.70
B105-04 B - D Dimensions
2.69 2.69 3.66 6.66 1.34 2.27 .070
L105-04W Dimensions
2.69 2.69 3.66 6.78 1.34 2.27 .070
L105-06B - D Dimensions
3.03 2.69 3.66 6.66 1.34 2.55 .070
L105-06W Dimensions
3.03 2.69 3.66 6.78 1.34 2.55 0.81

NOTE:
B35 & B75 1.25" Diameter hole required for panel mounting.
B105 : 1.75" Diameter hole required for panel mounting.

Part # Port Size Bowl Type
B35-01A 1/8" Polyurethane Bowl
B35-02A 1/4" Polyurethane Bowl
B35-01D 1/8" Metal without Sight Gauge
B35-02D 1/4" Metal without Sight Gauge
B35-01W 1/8" Zinc Bowl with Sight Gauge
B35-02W 1/4" Zinc Bowl with Sight Gauge
B75-02B 1/4" Polyurethane Bowl with Plastic Guard
B75-03B 3/8" Polyurethane Bowl with Plastic Guard
B75-04B 1/2" Polyurethane Bowl with Plastic Guard
B75-02D 1/4" Metal without Sight Gauge
B75-03D 3/8" Metal without Sight Gauge
B75-04D 1/2" Metal without Sight Gauge
B75-02W 1/4" Metal with Sight Gauge
B75-03W 3/8" Metal with Sight Gauge
B75-04W 1/2" Metal with Sight Gauge
B105-04B 1/2" Polyurethane Bowl with Plastic Guard
B105-06B 3/4" Polyurethane Bowl with Plastic Guard
B105-04D 1/2" Metal without Sight Gauge
B105-06D 3/4" Metal without Sight Gauge
B105-04W 1/2" Metal with Sight Gauge
B105-06W 3/4" Metal with Sight Gauge

Pressure Ranges

A: 0–25 PSIG
B: 0–60 PSIG
C: 0–125 PSIG
D: 0–250 PSIG (available only in the R105 series)

B35 Kits & Accessories

Part # Kits
BKF35A Polyurethane (A)
BKF35D Zinc (D)
BKF35W Zinc (W) Wraparound Sight Gauge
Drain Kits
SA600Y7-1 Manual Twist Drain
PKF35 Piston (Max. Pressure: 175 PSIG)
SA602A7 Semi-Automatic “Overnight” Drain
(Drains automatically under zero pressure)
Element Kits
EK504VY 5 Micron
EK504Y 20 Micron
Kits
RKF30 Repair Kit, Deflector, Retainer
CKR35A Cage Kits A Range
CKR35BC Cage Kits B & C Range
R35-0545P Control Knob
SA161X57 Panel Mounting Bracket Kit
SAR35Y57 Face Mounting Bracket Kit
R05X51-P Panel Mount Nut, Plastic
R05X51-A Panel Mount Nut, Aluminum
RKR30K Non-Relieving Piston, Valve Assembly
RKR30 Relieving Piston, Valve Assembly

Specifications

  • Gauge Ports: (2)1/8 Inch
  • Supply Pressure: 300 PSIG Maximum
  • Temperature Rating: 40°F to 125°F

Gauges sold separately

Pressure gauges dial size 1-1/2"
back connection 1/8" NPT
steel body

gauge

Part # Range
274Z60 0-60
274Z160 0-160

B75 Kits & Accessories

Part # Kits
BKF55B Polyurethane (B)
BKF55D Zinc (D)
BKF55W Zinc (W) Wraparound Sight Gauge
Drain Kits
SA600Y7-1 Manual Twist Drain
SA602A7 Semi-Automatic “Overnight” Drain
(Drains automatically under zero pressure)
SA605MD Automatic Float Drain
Element Kits
EK55G 5 Micron
EK55J 40 Micron
Kits
RKF55 Repair Kit, Deflector, Retainer
CKR75 Cage Kits Standard
CKR75T Cage Kits Tamperproof
R35-0545P Control Knob
SA161X57 Panel Mounting Bracket Kit
SAR75Y57 Face Mounting Bracket Kit
R05X51-P Panel Mount Nut, Plastic
R05X51-A Panel Mount Nut, Aluminum
RKR75K Non-Relieving Piston, Valve Assembly
RKR75 Relieving Piston, Valve Assembly

Specifications

  • Gauge Ports: (2)1/8 Inch
  • Supply Pressure: 300 PSIG Maximum
  • Temperature Rating: 40°F to 125°F

Gauges sold separately

Pressure gauges dial size 1-1/2"
back connection 1/8" NPT
steel body

gauge

Part # Range
274Z60 0-60
274Z160 0-160

B105 Kits & Accessories

Part # Kits
BKF105B Polyurethane (B)
BKF105D Zinc (D)
BKF105W Zinc (W) Wraparound Sight Gauge
Drain Kits
SA600Y7-1 Manual Twist Drain
SA602A7 Semi-Automatic “Overnight” Drain
(Drains automatically under zero pressure)
SA605MD Automatic Float Drain
Element Kits
EKF100G 5 Micron
EKF100J 40 Micron
Kits
RKF100 Repair Kit, Deflector, Retainer
CKR105 Cage Kits Standard
R105-0542P Control Knob
SAR10X57 Panel Mounting Bracket Kit
SAR105Y57 Face Mounting Bracket Kit
R10X51-P Panel Mount Nut, Plastic
R10X51-A Panel Mount Nut, Aluminum
RKR105K Non-Relieving Piston, Valve Assembly
RKR105 Relieving Piston, Valve Assembly

Specifications

  • Gauge Ports: (2)1/4 Inch
  • Supply Pressure: 300 PSIG Maximum
  • Temperature Rating: 40°F to 150°F

Gauges sold separately

Pressure gauges dial size 2"
back connection 1/4" NPT
steel body

gauge

Part # Range
275Y30 0-30
275Y60 0-60
275Y160 0-160
275Y300 0-300

^Top



Due to the fact that we are continuously improving our products, the descriptions, illustrations,
specifications,dimensions, and part numbers are subject to change without notice.
Every effort has been made to have the information on this site error free, we can not be responsible for errors and or omissions.


Airtek (1990) Ltée, 5750 Donahue St., Montreal, Qc, Canada, H4S 1C1
Tel: 514-336-3820
