Tools & Accessories
Ozat Impact Sockets

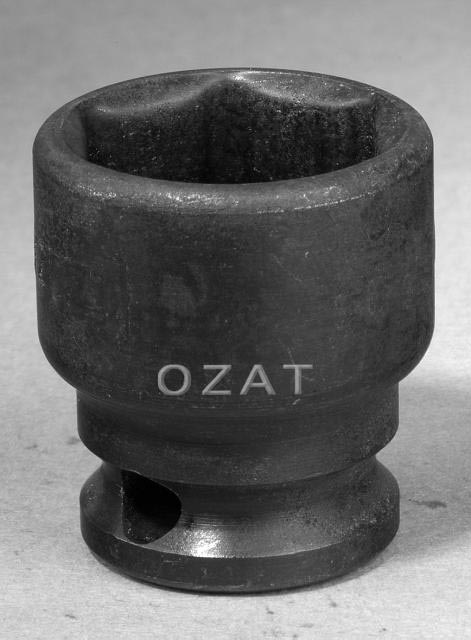

Ozat 1/2" Drive 6 Point Impact Sockets

ozat
ozat
ozat

Part #
Short		 Part #
Deep		 MM American
Fractional		 Whitworth Diameter
D1		 Diameter
D2		 Clearance
Short		 Clearance
Deep		 Length
Short		 Length
Deep		 Opening Depth
T
08M8 08M8L 8     15 25 15 69 31 85 4
08M9 08M9L 9     16 25 15 69 31 85 4
0806 0806L   3/8"   16 25 15 69 31 85 4
08M10 08M10L 10     17 25 15 69 31 85 5
08M11W03 08M11LW03L 11   3/16" 19 25 15 69 31 85 5
0807 0807L   7/16"   19 25 15 69 31 85 6
08M12 08M12L 12     20 25 17 69 31 85 6
0808 0808L   1/2"   20 25 17 69 31 85 6
08M13 08M13L 13     21 25 17 69 31 85 6
08W04 08W04L     1/4" 21 25 17 69 31 85 6
08M14 08M14L 14     22 25 17 69 31 85 7
0809 0809L   9/16"   22 25 17 69 31 85 7
08M15 08M15L 15     24 30 19 69 33 85 7
08W05 08W05L     5/16" 24 30 19 69 33 85 7
0810 0810L   5/8"   25 25 19 69 33 85 8
08M16 08M16L 16     25 30 19 69 33 85 7
08M17 08M17L 17     26 30 19 69 35 85 9
0811 0811L   11/16"   25 25 19 69 35 85 9
08M18W06 08M18W06L 18   3/8" 28 30 19 69 35 85 9
0812M19 0812M19L 19 3/4"   28 30 19 69 35 85 9.5
08M20 08M20L 20     30 30 21 69 35 85 10
0813 0813L   13/16"   30 30 21 69 35 85 11
08M21W07 08M21W07L 21   7/16" 30 30 21 69 35 85 10
08M22 08M22L 22     33 30 21 69 37 85 10
0814 0814L   7/8"   33 30 23 69 39 85 13
08M23 08M23L 23     35 30 23 69 39 85 12
08W08 08W08L     1/2" 35 35 23 69 39 85 13
0815 0815L   15/16"   35 35 23 69 39 85 13
08M24 08M24L 24     35 30 23 69 39 85 12
08M25 08M25L 25     35 30 24 69 39 85 13
0816 0816L   1"   38 35 24 69 39 85 13
08W09 08W09L     9/16" 38 35 24 69 39 85 13
08M26 08M26L 26     38 35 24 69 39 85 13
0817M27 0817M27L 27 1-1/16"   38 35 24 69 39 85 13
08M28W10 08M28W10L 28   5/8" 38 35 25 69 41 85 14
0818 0818L   1-1/8"   41 35 27 69 44 85 16.5
08M29 08M29L 29     41 35 27 69 44 85 14
0819M30 0819M30L 30 1-3/16"   41 35 27 69 44 85 16.5
08W11 08W11L     11/16" 41 35 27 69 44 85 17
08M31 08M31L 31     44 35 27 69 44 85 16.5
0820 0820L   1-1/4"   44 35 27 69 44 85 17
08M32 08M32L 32     44 35 27 69 44 85 16.5
08M33W12 08M33W12L 33   3/4" 44 35 27 69 44 85 17
0821 0821L   1-5/16"   44 35 30 69 46 85 19
08M34 08M34L 34     49 35 30 69 46 85 17
0822M35 0822M35L 35 1-3/8"   49 35 32 69 47 85 19
08W13 08W13L     13/16" 49 35 32 69 47 85 19
08M36 08M36L 36     49 44 32 69 47 85 19
0823 0823L   1-7/16"   49 44 32 69 47 85 19
08M37 08M37L 37     52 44 32 69 47 85 19
08W14 08W14L     7/8" 52 44 32 69 47 85 19
0824M38 0824M38L 38 1-1/2"   52 44 34 69 50 85 22
