Part # GP-101

Rivet Diameter : 1/4"
Traction Power : 1603 kg.f
Stroke Length : 14 mm
Nose Piece : 3/32", 1/8", 5/32", 3/16", 7/32", 1/4"
Net Weight : 1.78 kg
Height : 272 mm
Air Cons. : 3.2 CFM
Air Inlet : 1/4"

Part # GP-101A

Rivet Diameter : 1/4"
Traction Power : 1229 kg.f
Stroke Length : 14 mm
Nose Piece : 3/32", 1/8", 5/32", 3/16", 7/32", 1/4"
Net Weight : 1.56 kg
Height : 268 mm
Air Cons. : 3 CFM
Air Inlet : 1/4"

Part # GP-102

Rivet Diameter : 3/16"
Traction Power : 1045 kg.f
Stroke Length : 16 mm
Nose Piece : 3/32", 1/8", 5/32", 3/16"
Net Weight : 1.56 kg
Height : 270 mm
Air Cons. : 3.2 CFM
Air Inlet : 1/4"

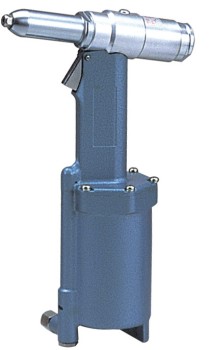

Part # GP-103

Rivet Diameter : 3/16"
Traction Power : 1090 kg.f
Stroke Length : 17 mm
Nose Piece : 3/32", 1/8", 5/32", 3/16"
Air Cons. : 3 CFM
Air Inlet : 1/4"
Height : 293 mm
Net Weight : 1.41 kg

Part # GP-104

Rivet Diameter : 3/16"
Traction Power : 1045 kg.f
Stroke Length : 16 mm
Nose Piece : 3/32", 1/8", 5/32", 3/16"
Net Weight : 1.52 kg
Height : 265 mm
Air Cons. : 3.2 CFM
Air Inlet : 1/4"

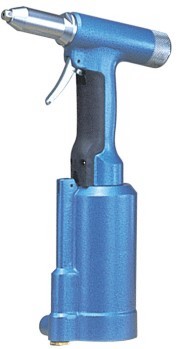

Part # GP-105

Rivet Diameter : 3/16"
Traction Power : 1030 kg.f
Stroke Length : 15 mm
Nose Piece : 3/32", 1/8", 5/32", 3/16"
Net Weight : 1.80 kg
Height : 340 mm
Air Cons. : 3.88 CFM
Air Inlet : 1/4"

Part # GP-485L

Rivet Diameter : 1/4"
Traction Power : 1200 kg.f
Stroke Length : 14 mm
Nose Piece : 3/32", 1/8", 5/32", 3/16", 1/4"
Net Weight : 1.25 kg
Height : 245 mm
Air Cons. : 3.88 CFM
Air Inlet : 1/4"

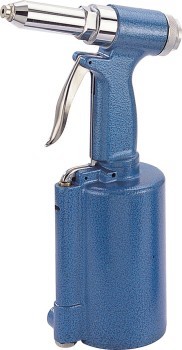

Part # GP-500

Rivet Diameter : 1/4"
Traction Power : 1250 kg.f
Stroke Length : 18.5 mm
Nose Piece : 3/32", 1/8", 5/32", 3/16", 7/32", 1/4"
Net Weight : 2.10 kg
Height : 325 mm
Air Cons. : 4.6 CFM
Air Inlet : 1/4"

Part # GP-501

Rivet Diameter : 3/16"
Traction Power : 900 kg.f
Stroke Length : 18 mm
Nose Piece : 1/8", 5/32", 3/16"
Net Weight : 1.50 kg
Height : 300 mm
Air Cons. : 3.88 CFM
Air Inlet : 1/4"

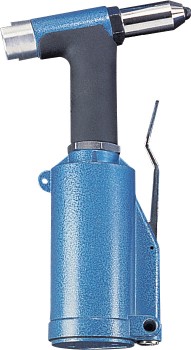

Part # GP-700

Rivet Diameter : 3/16"
Traction Power : 900 kg.f
Stroke Length : 14.3 mm
Nose Piece : 3/32", 1/8", 5/32", 3/16"
Air Cons. : 3.53 CFM
Air Inlet : 1/4"
Height : 290 mm
Net Weight : 1.50 kg

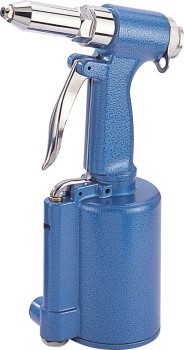

Part # GP-843

Rivet Diameter : 3/16"
Traction Power : 880 kg.f
Stroke Length : 14 mm
Nose Piece : 3/32", 1/8", 5/32", 3/16"
Net Weight : 1.80 kg
Height : 286 mm
Air Cons. : 3.53 CFM
Air Inlet : 1/4"
